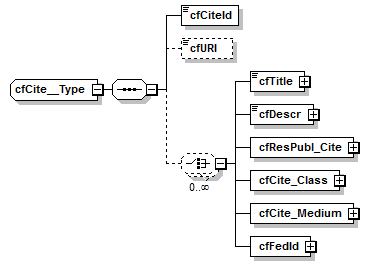

complexType cfCite__Type
diagram kdsf_p431.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
children cfCiteId cfURI cfTitle cfDescr cfResPubl_Cite cfCite_Class cfCite_Medium cfFedId
used by
element CERIF/cfCite
source <xs:complexType name="cfCite__Type">
  <xs:sequence>
    <xs:element name="cfCiteId" type="cfId__Type"/>
    <xs:element name="cfURI" type="xs:string" minOccurs="0"/>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <!-- embedded multiple-language attributes -->
      <xs:element name="cfTitle" type="cfMLangString__Type"/>
      <xs:element name="cfDescr" type="cfMLangString__Type"/>
      <!-- embedded linking entities -->
      <xs:element name="cfResPubl_Cite">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="cfResPublId" type="cfId__Type"/>
            <xs:group ref="cfCoreClassWithFraction__Group"/>
            <xs:element name="cfYear" type="xs:int" minOccurs="0"/>
            <xs:element name="cfCount" type="xs:float" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="cfCite_Class" type="cfCoreClassWithFraction__Type"/>
      <xs:element name="cfCite_Medium">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="cfMediumId" type="cfId__Type"/>
            <xs:group ref="cfCoreClassWithFraction__Group"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <!-- embedded federated identifiers -->
      <xs:element name="cfFedId" type="cfFedId__EmbType"/>
    </xs:choice>
  </xs:sequence>
</xs:complexType>

element cfCite__Type/cfCiteId
diagram kdsf_p432.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type cfId__Type
properties
content simple
facets
Kind Value Annotation
maxLength 128
source <xs:element name="cfCiteId" type="cfId__Type"/>

element cfCite__Type/cfURI
diagram kdsf_p433.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="cfURI" type="xs:string" minOccurs="0"/>

element cfCite__Type/cfTitle
diagram kdsf_p434.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type cfMLangString__Type
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
cfLangCode  xs:string  required
cfTrans  cfTrans__Type  required
source <xs:element name="cfTitle" type="cfMLangString__Type"/>

element cfCite__Type/cfDescr
diagram kdsf_p435.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type cfMLangString__Type
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
cfLangCode  xs:string  required
cfTrans  cfTrans__Type  required
source <xs:element name="cfDescr" type="cfMLangString__Type"/>

element cfCite__Type/cfResPubl_Cite
diagram kdsf_p436.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
properties
content complex
children cfResPublId cfClassId cfClassSchemeId cfStartDate cfEndDate cfFraction cfYear cfCount
source <xs:element name="cfResPubl_Cite">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="cfResPublId" type="cfId__Type"/>
      <xs:group ref="cfCoreClassWithFraction__Group"/>
      <xs:element name="cfYear" type="xs:int" minOccurs="0"/>
      <xs:element name="cfCount" type="xs:float" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element cfCite__Type/cfResPubl_Cite/cfResPublId
diagram kdsf_p437.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type cfId__Type
properties
content simple
facets
Kind Value Annotation
maxLength 128
source <xs:element name="cfResPublId" type="cfId__Type"/>

element cfCite__Type/cfResPubl_Cite/cfYear
diagram kdsf_p438.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type xs:int
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="cfYear" type="xs:int" minOccurs="0"/>

element cfCite__Type/cfResPubl_Cite/cfCount
diagram kdsf_p439.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type xs:float
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="cfCount" type="xs:float" minOccurs="0"/>

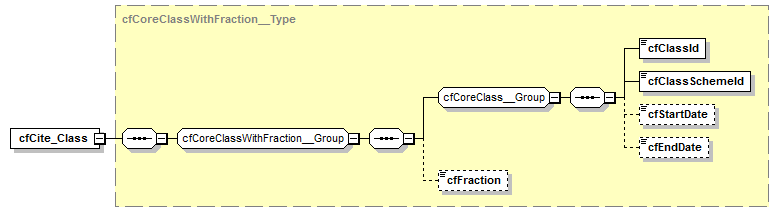

element cfCite__Type/cfCite_Class
diagram kdsf_p440.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type cfCoreClassWithFraction__Type
properties
content complex
children cfClassId cfClassSchemeId cfStartDate cfEndDate cfFraction
source <xs:element name="cfCite_Class" type="cfCoreClassWithFraction__Type"/>

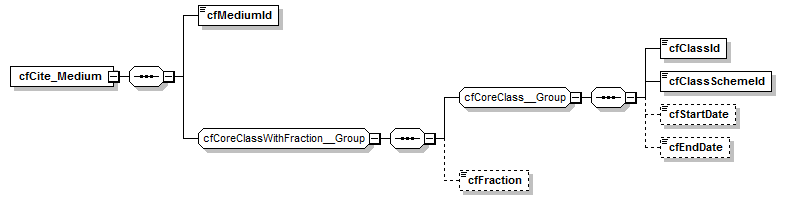

element cfCite__Type/cfCite_Medium
diagram kdsf_p441.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
properties
content complex
children cfMediumId cfClassId cfClassSchemeId cfStartDate cfEndDate cfFraction
source <xs:element name="cfCite_Medium">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="cfMediumId" type="cfId__Type"/>
      <xs:group ref="cfCoreClassWithFraction__Group"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element cfCite__Type/cfCite_Medium/cfMediumId
diagram kdsf_p442.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type cfId__Type
properties
content simple
facets
Kind Value Annotation
maxLength 128
source <xs:element name="cfMediumId" type="cfId__Type"/>

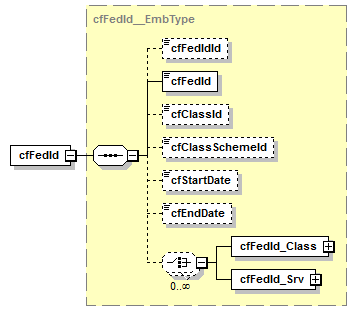

element cfCite__Type/cfFedId
diagram kdsf_p443.png
namespace urn:xmlns:org:eurocris:cerif-1.6-2
type cfFedId__EmbType
properties
content complex
children cfFedIdId cfFedId cfClassId cfClassSchemeId cfStartDate cfEndDate cfFedId_Class cfFedId_Srv
source <xs:element name="cfFedId" type="cfFedId__EmbType"/>
