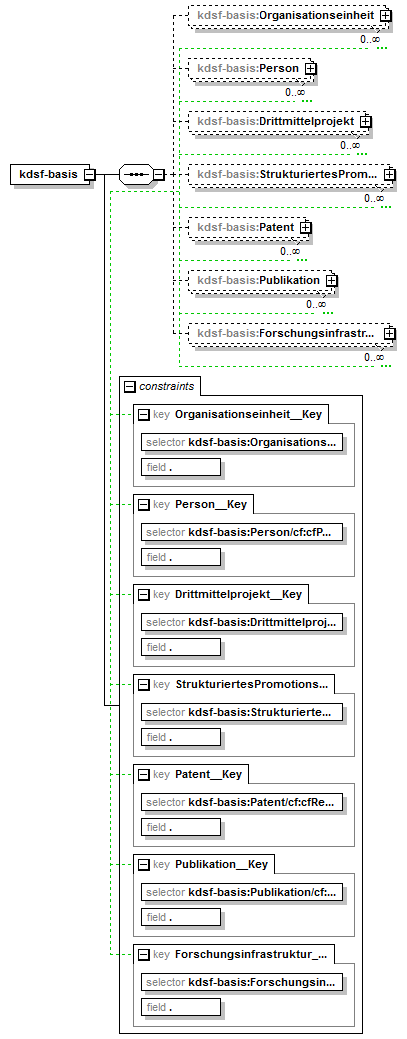

element kdsf-basis
diagram kdsf_p2409.png
namespace http://kerndatensatz-forschung.de/version1/technisches_datenmodell/xsd/kdsf-basis.xsd
properties
content complex
children kdsf-basis:Organisationseinheit kdsf-basis:Person kdsf-basis:Drittmittelprojekt kdsf-basis:StrukturiertesPromotionsprogramm kdsf-basis:Patent kdsf-basis:Publikation kdsf-basis:Forschungsinfrastruktur
used by
element kdsf
identity constraints
  Name  Refer  Selector  Field(s)  Annotation
key  Organisationseinheit__Key    kdsf-basis:Organisationseinheit/cf:cfOrgUnitId  .
key  Person__Key    kdsf-basis:Person/cf:cfPersId  .
key  Drittmittelprojekt__Key    kdsf-basis:Drittmittelprojekt/cf:cfProjId  .
key  StrukturiertesPromotionsprogramm__Key    kdsf-basis:StrukturiertesPromotionsprogramm/kdsf-basis:ID  .
key  Patent__Key    kdsf-basis:Patent/cf:cfResPatId  .
key  Publikation__Key    kdsf-basis:Publikation/cf:cfResPublId  .
key  Forschungsinfrastruktur__Key    kdsf-basis:Forschungsinfrastruktur/cf:cfEquipId  .
source <xs:element name="kdsf-basis">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Organisationseinheit" type="kdsf-basis:Organisationseinheit__Type" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="Person" type="kdsf-basis:Person__Type" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="Drittmittelprojekt" type="kdsf-basis:Drittmittelprojekt__Type" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="StrukturiertesPromotionsprogramm" type="kdsf-basis:StrukturiertesProgramm__Type" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="Patent" type="kdsf-basis:Patent__Type" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="Publikation" type="kdsf-basis:Publikation__Type" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="Forschungsinfrastruktur" type="kdsf-basis:Forschungsinfrastruktur__Type" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
  <xs:key name="Organisationseinheit__Key">
    <xs:selector xpath="kdsf-basis:Organisationseinheit/cf:cfOrgUnitId"/>
    <xs:field xpath="."/>
  </xs:key>
  <xs:key name="Person__Key">
    <xs:selector xpath="kdsf-basis:Person/cf:cfPersId"/>
    <xs:field xpath="."/>
  </xs:key>
  <xs:key name="Drittmittelprojekt__Key">
    <xs:selector xpath="kdsf-basis:Drittmittelprojekt/cf:cfProjId"/>
    <xs:field xpath="."/>
  </xs:key>
  <xs:key name="StrukturiertesPromotionsprogramm__Key">
    <xs:selector xpath="kdsf-basis:StrukturiertesPromotionsprogramm/kdsf-basis:ID"/>
    <xs:field xpath="."/>
  </xs:key>
  <xs:key name="Patent__Key">
    <xs:selector xpath="kdsf-basis:Patent/cf:cfResPatId"/>
    <xs:field xpath="."/>
  </xs:key>
  <xs:key name="Publikation__Key">
    <xs:selector xpath="kdsf-basis:Publikation/cf:cfResPublId"/>
    <xs:field xpath="."/>
  </xs:key>
  <xs:key name="Forschungsinfrastruktur__Key">
    <xs:selector xpath="kdsf-basis:Forschungsinfrastruktur/cf:cfEquipId"/>
    <xs:field xpath="."/>
  </xs:key>
</xs:element>

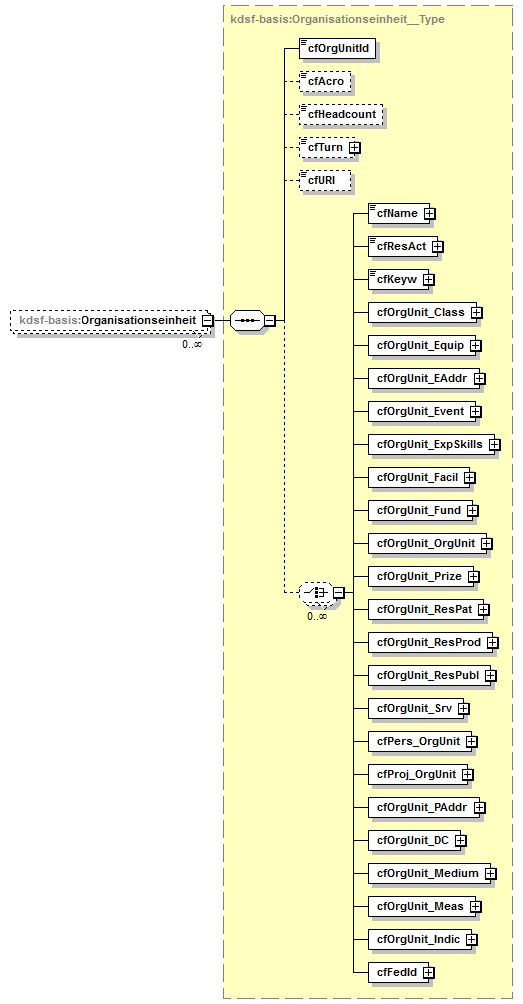

element kdsf-basis/Organisationseinheit
diagram kdsf_p2410.png
namespace http://kerndatensatz-forschung.de/version1/technisches_datenmodell/xsd/kdsf-basis.xsd
type kdsf-basis:Organisationseinheit__Type
properties
minOcc 0
maxOcc unbounded
content complex
children cfOrgUnitId cfAcro cfHeadcount cfTurn cfURI cfName cfResAct cfKeyw cfOrgUnit_Class cfOrgUnit_Equip cfOrgUnit_EAddr cfOrgUnit_Event cfOrgUnit_ExpSkills cfOrgUnit_Facil cfOrgUnit_Fund cfOrgUnit_OrgUnit cfOrgUnit_Prize cfOrgUnit_ResPat cfOrgUnit_ResProd cfOrgUnit_ResPubl cfOrgUnit_Srv cfPers_OrgUnit cfProj_OrgUnit cfOrgUnit_PAddr cfOrgUnit_DC cfOrgUnit_Medium cfOrgUnit_Meas cfOrgUnit_Indic cfFedId
source <xs:element name="Organisationseinheit" type="kdsf-basis:Organisationseinheit__Type" minOccurs="0" maxOccurs="unbounded"/>

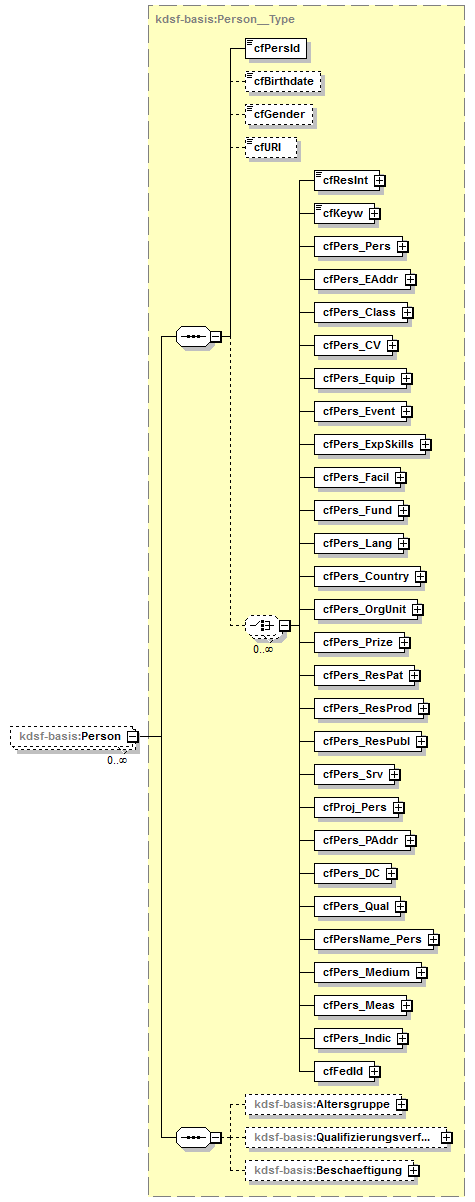

element kdsf-basis/Person
diagram kdsf_p2411.png
namespace http://kerndatensatz-forschung.de/version1/technisches_datenmodell/xsd/kdsf-basis.xsd
type kdsf-basis:Person__Type
properties
minOcc 0
maxOcc unbounded
content complex
children cfPersId cfBirthdate cfGender cfURI cfResInt cfKeyw cfPers_Pers cfPers_EAddr cfPers_Class cfPers_CV cfPers_Equip cfPers_Event cfPers_ExpSkills cfPers_Facil cfPers_Fund cfPers_Lang cfPers_Country cfPers_OrgUnit cfPers_Prize cfPers_ResPat cfPers_ResProd cfPers_ResPubl cfPers_Srv cfProj_Pers cfPers_PAddr cfPers_DC cfPers_Qual cfPersName_Pers cfPers_Medium cfPers_Meas cfPers_Indic cfFedId kdsf-basis:Altersgruppe kdsf-basis:Qualifizierungsverfahren kdsf-basis:Beschaeftigung
source <xs:element name="Person" type="kdsf-basis:Person__Type" minOccurs="0" maxOccurs="unbounded"/>

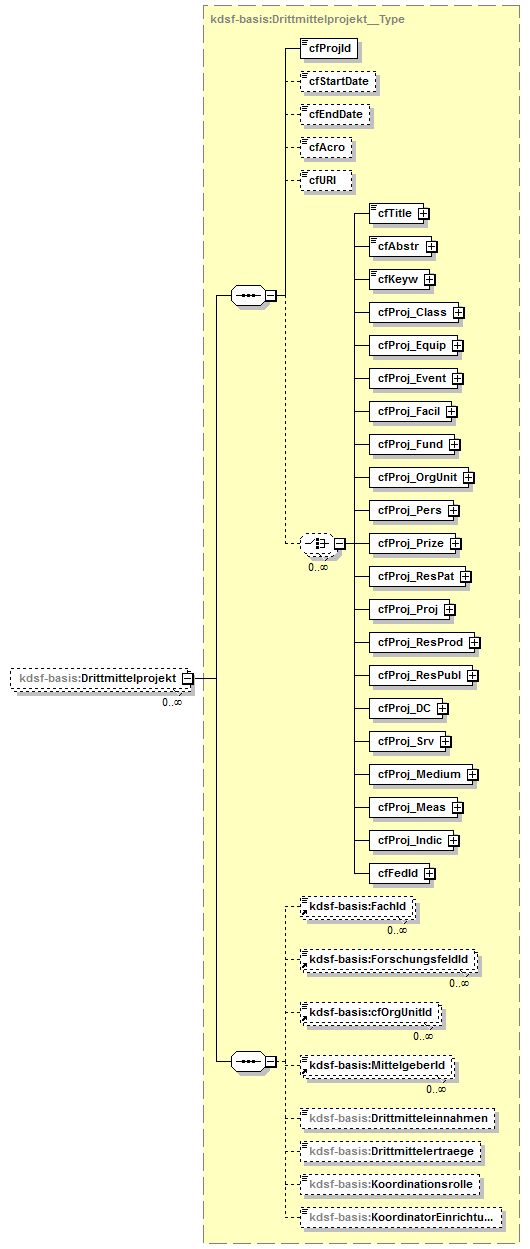

element kdsf-basis/Drittmittelprojekt
diagram kdsf_p2412.png
namespace http://kerndatensatz-forschung.de/version1/technisches_datenmodell/xsd/kdsf-basis.xsd
type kdsf-basis:Drittmittelprojekt__Type
properties
minOcc 0
maxOcc unbounded
content complex
children cfProjId cfStartDate cfEndDate cfAcro cfURI cfTitle cfAbstr cfKeyw cfProj_Class cfProj_Equip cfProj_Event cfProj_Facil cfProj_Fund cfProj_OrgUnit cfProj_Pers cfProj_Prize cfProj_ResPat cfProj_Proj cfProj_ResProd cfProj_ResPubl cfProj_DC cfProj_Srv cfProj_Medium cfProj_Meas cfProj_Indic cfFedId kdsf-basis:FachId kdsf-basis:ForschungsfeldId kdsf-basis:cfOrgUnitId kdsf-basis:MittelgeberId kdsf-basis:Drittmitteleinnahmen kdsf-basis:Drittmittelertraege kdsf-basis:Koordinationsrolle kdsf-basis:KoordinatorEinrichtung
source <xs:element name="Drittmittelprojekt" type="kdsf-basis:Drittmittelprojekt__Type" minOccurs="0" maxOccurs="unbounded"/>

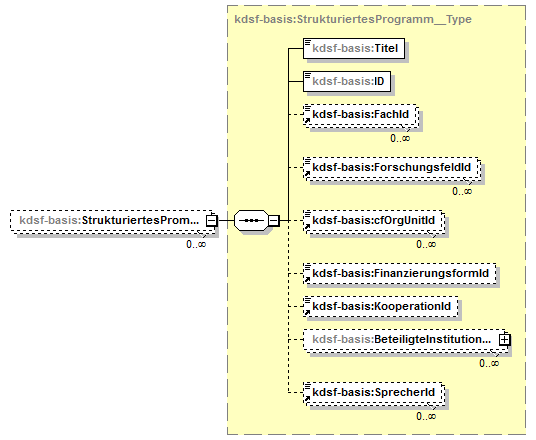

element kdsf-basis/StrukturiertesPromotionsprogramm
diagram kdsf_p2413.png
namespace http://kerndatensatz-forschung.de/version1/technisches_datenmodell/xsd/kdsf-basis.xsd
type kdsf-basis:StrukturiertesProgramm__Type
properties
minOcc 0
maxOcc unbounded
content complex
children kdsf-basis:Titel kdsf-basis:ID kdsf-basis:FachId kdsf-basis:ForschungsfeldId kdsf-basis:cfOrgUnitId kdsf-basis:FinanzierungsformId kdsf-basis:KooperationId kdsf-basis:BeteiligteInstitutionen kdsf-basis:SprecherId
source <xs:element name="StrukturiertesPromotionsprogramm" type="kdsf-basis:StrukturiertesProgramm__Type" minOccurs="0" maxOccurs="unbounded"/>

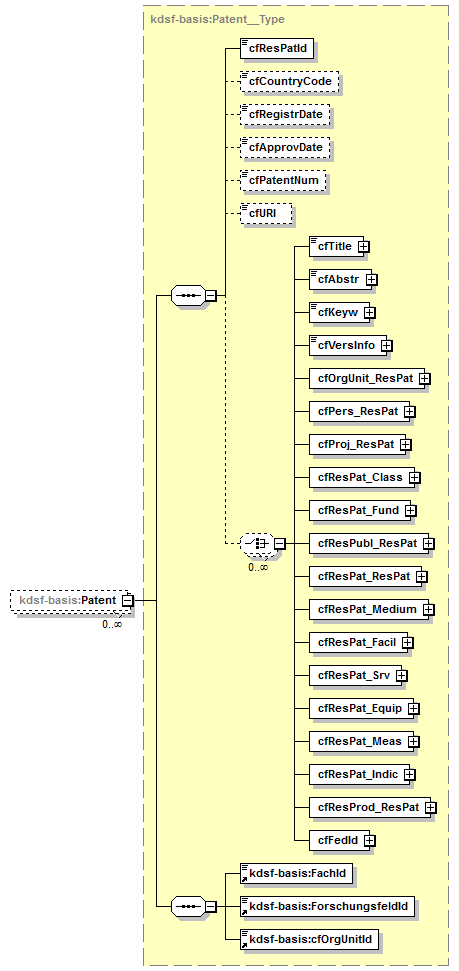

element kdsf-basis/Patent
diagram kdsf_p2414.png
namespace http://kerndatensatz-forschung.de/version1/technisches_datenmodell/xsd/kdsf-basis.xsd
type kdsf-basis:Patent__Type
properties
minOcc 0
maxOcc unbounded
content complex
children cfResPatId cfCountryCode cfRegistrDate cfApprovDate cfPatentNum cfURI cfTitle cfAbstr cfKeyw cfVersInfo cfOrgUnit_ResPat cfPers_ResPat cfProj_ResPat cfResPat_Class cfResPat_Fund cfResPubl_ResPat cfResPat_ResPat cfResPat_Medium cfResPat_Facil cfResPat_Srv cfResPat_Equip cfResPat_Meas cfResPat_Indic cfResProd_ResPat cfFedId kdsf-basis:FachId kdsf-basis:ForschungsfeldId kdsf-basis:cfOrgUnitId
source <xs:element name="Patent" type="kdsf-basis:Patent__Type" minOccurs="0" maxOccurs="unbounded"/>

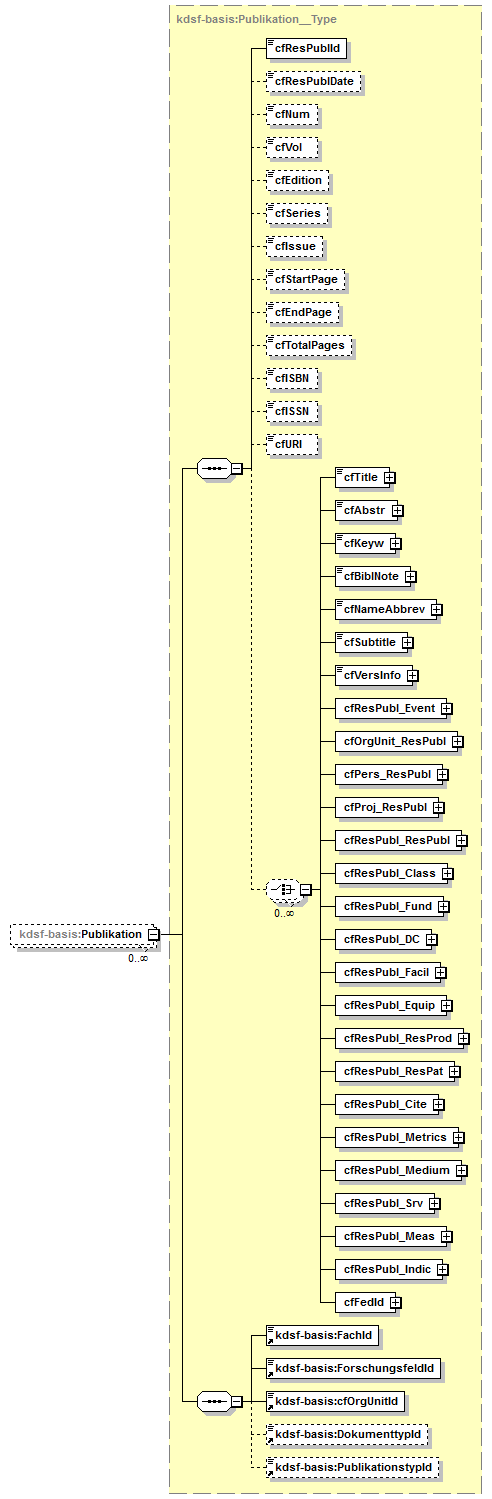

element kdsf-basis/Publikation
diagram kdsf_p2415.png
namespace http://kerndatensatz-forschung.de/version1/technisches_datenmodell/xsd/kdsf-basis.xsd
type kdsf-basis:Publikation__Type
properties
minOcc 0
maxOcc unbounded
content complex
children cfResPublId cfResPublDate cfNum cfVol cfEdition cfSeries cfIssue cfStartPage cfEndPage cfTotalPages cfISBN cfISSN cfURI cfTitle cfAbstr cfKeyw cfBiblNote cfNameAbbrev cfSubtitle cfVersInfo cfResPubl_Event cfOrgUnit_ResPubl cfPers_ResPubl cfProj_ResPubl cfResPubl_ResPubl cfResPubl_Class cfResPubl_Fund cfResPubl_DC cfResPubl_Facil cfResPubl_Equip cfResPubl_ResProd cfResPubl_ResPat cfResPubl_Cite cfResPubl_Metrics cfResPubl_Medium cfResPubl_Srv cfResPubl_Meas cfResPubl_Indic cfFedId kdsf-basis:FachId kdsf-basis:ForschungsfeldId kdsf-basis:cfOrgUnitId kdsf-basis:DokumenttypId kdsf-basis:PublikationstypId
source <xs:element name="Publikation" type="kdsf-basis:Publikation__Type" minOccurs="0" maxOccurs="unbounded"/>

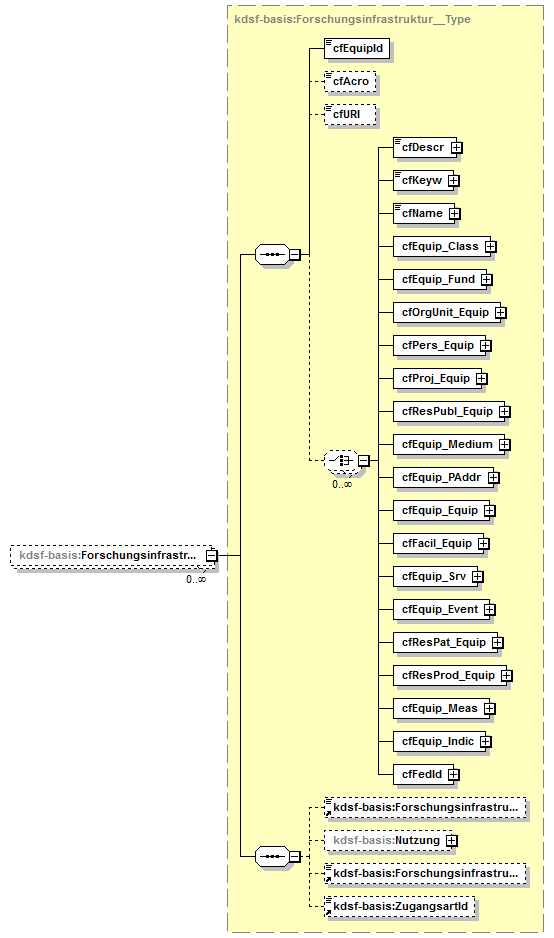

element kdsf-basis/Forschungsinfrastruktur
diagram kdsf_p2416.png
namespace http://kerndatensatz-forschung.de/version1/technisches_datenmodell/xsd/kdsf-basis.xsd
type kdsf-basis:Forschungsinfrastruktur__Type
properties
minOcc 0
maxOcc unbounded
content complex
children cfEquipId cfAcro cfURI cfDescr cfKeyw cfName cfEquip_Class cfEquip_Fund cfOrgUnit_Equip cfPers_Equip cfProj_Equip cfResPubl_Equip cfEquip_Medium cfEquip_PAddr cfEquip_Equip cfFacil_Equip cfEquip_Srv cfEquip_Event cfResPat_Equip cfResProd_Equip cfEquip_Meas cfEquip_Indic cfFedId kdsf-basis:ForschungsinfrastrukturartId kdsf-basis:Nutzung kdsf-basis:ForschungsinfrastrukturtypId kdsf-basis:ZugangsartId
source <xs:element name="Forschungsinfrastruktur" type="kdsf-basis:Forschungsinfrastruktur__Type" minOccurs="0" maxOccurs="unbounded"/>
